Maximizing Agricultural Water Efficiency: Integrating IoT and Supervised Learning for Smart Irrigation Optimization



Krishan Kumar ¹, Dr. Rakesh K Yadav ²



¹ Research Scholar, Computer Science and Engineering, GLOCAL University, Mirzapur Pole, Saharanpur, U.P., India

² Professor, Computer Science and Engineering, GLOCAL University, Mirzapur Pole, Saharanpur, U.P., India



1. INTRODUCTION

Agricultural development depends on water as it is necessary for the development of plants. Therefore, a sufficient amount of water should be provided at the right moment to boost agricultural productivity. Authorities also worry about water shortages in numerous nations where fast and significant overall water usage has grown Fraiture & Wichelns (2010).

Conventional irrigation methods are not enough to solve water shortage Nikzad et al. (2019), Singh (2019) and Zhang et al. (2019). Though only if agricultural water is properly managed, land and water resources are enough to feed the globe for the next fifty years Molden (2007). This sector has to employ present technological developments and investigate new ideas in order to enhance water management and consequently reduce water usage.

Precision farming is meant to solve a lot of different farming problems. It minimizes water usage and might help output to be improved and expanded Zhang et al. (2002). Using creative technology, precision agriculture's main goals are to increase irrigation management and raise crop yields while using fewer energy and inputs. After gathering data using satellites, drones, and sensors among other observation techniques, precision agriculture links it to decision support tools via online and mobile apps. These information are collected and examined to improve and ease farmers' everyday life Khanna & Kaur (2019).

Technological developments in recent years have helped agriculture to become more industrialized and technologically accessible. Using several intelligent farming tools, which have raised their predictability and efficiency, farmers have gained control of agricultural and animal production operations.

Climate warming and extreme storms aggravate the hazards to important infrastructure Kumar et al. (2018). For many countries, one of the main agricultural issues is reduced water and energy use during irrigation. About 70% of water is used globally for agriculture; most of these countries suffer with water shortage therefore they have to employ smart irrigation methods and rational water resource management Johansson et al. (2016), Doungmanee (2016) and Munoz et al. (2018).

Data centers, sensors and software-equipped devices, machines, and data centers form part of the IoT and interact via the Internet Ray (2018). The main objectives of the Internet of Things are to enhance machine-to----communication and enable the optimal decision free from human involvement Popkova et al. (2019). The Internet of Things' development and application helped many procedures to change in spanning home security, equipment manufacture, health monitoring, automated transportation, and—most famously—agriculture Asghari et al. (2019).

Acknowledging the advantages of precision farming, this paper suggests a clever irrigation system using a supervised learning approach for crops. The suggested approach considers land and data from agricultural crops to make irrigation recommendations. This form of smart irrigation guarantees the required water supply to the crops without waste of resources and helps to save water resources. The section following details the intended work.



2. PROPOSEDENERGY-EFFICIENTSMARTIRRIGATION SYSTEM

Field sensors, sink nodes, IoT-enabled valves, and user terminals are among the many components of the proposed energy-efficient smarter irrigation system. Once the matter calls for response, the user is alerted. While guaranteeing improved output, the smart irrigation system helps to water the crops as required and reduces water waste. This part contains a quick overview of all the elements. Figure 1 shows the general flow diagram of the intended task.

Gathering data from the agricultural field, the field sensor analyzes and sends the data to the sink node. The "field sensors" in this paper denote sensors of soil moisture, water level, and temperature. The watering for the crop is decided upon by the inputs of all these sensors. Gathering and distributing data from every sensor node to the "Cloud Server" (CS) falls to the sink node.



Figure 1

Figure 1 The Overall Flow of the Proposed Work



To make wise judgments, the CS cleans the duplicates and analyzes the data. Furthermore, this project controls water flow by means of IoT connected valve controllers. Current updates are then and there sent to the users.

The field sensors cover a hundred meters of ground. From all the field sensors, the sink node accumulates and sends data to the Control System (CS), which evaluates and verifies the data to ascertain when to water. A Support Vector Machine (SVM) makes the decision; so, the detected data guides the water flow. One may understand decision-making as follows.



3. Decision Making by SVM

Teaching the SVM classifier the desired feature set helps the classifier to decide on irrigation. Training the classifier on the training cases helps one to achieve this. This study uses 𝑛(𝑛 − 1)/2 SVM classifiers and derives the conclusion by determining the most commonly occurring choice. A traditional SVM uses a hyperplane as a dividing line and indicates two different classes for items.



𝑤.𝑡𝑠𝑖+ 𝑏𝑖𝑎𝑠≥+1𝑓𝑜𝑟𝑝𝑖=+1                                                                                               (1.1)



𝑤.𝑡𝑠𝑖+ 𝑏𝑖𝑎𝑠≤−1𝑓𝑜𝑟𝑝𝑖=−1                                                                                               (1.2)



In the above equations, 𝑡𝑠𝑖is a sample for training, and w seems to be a linear hyperplane. Because linear separation of data is never achievable, slack variables are used{𝑠𝑣}𝑞 are introduced as shown in the following equation.



𝑝(𝑤.𝑡𝑠𝑖)+𝑏𝑖𝑎𝑠>1−𝑠𝑣𝑖                                                                                                       (1.3)



Every pair of classes generates 𝑛(𝑛– 1)/2 classifiers. This approach aggregates the classifier assessments to get an ultimate decision. This kind of classification guarantees more accurate results and saves time. With an IoT-enabled water valve controller, the suggested smart irrigation system preserves the soil moisture with 60% while the practical moisture of soil in the agricultural area is 60%. The valve is regulated according on the detected temperature (𝑡𝑚𝑝) reading by the temperature sensor displayed in the following situation.



𝑖𝑓𝑡𝑚𝑝<15℃;𝑜𝑝𝑒𝑛𝑣𝑎𝑙𝑣𝑒𝑏𝑦3 𝑚𝑚

{𝑖𝑓15℃<𝑡𝑚𝑝<25℃;𝑜𝑝𝑒𝑛𝑣𝑎𝑙𝑣𝑒𝑏𝑦5𝑚𝑚                                                                      (1.4)

𝑖𝑓𝑡𝑚𝑝<25℃;𝑜𝑝𝑒𝑛𝑣𝑎𝑙𝑣𝑒𝑏𝑦8 𝑚𝑚

The primary flow of this work is shown by the following method.



Proposed Algorithm for SmartIrrigation System

BEGIN //Field Sensors Acquire soil moisture, temperature and water level readings; Forward the sensed readings to the sink node; //Sinknode Receive readings from the field sensors; Locally process it by removing duplicates; Forward the data to the cloud server; //Cloud server Receive data from sink node; Apply SVM classifier; Check for the temperature If tmp<15℃

openvalveby3mm; if 15℃<tmp< 25℃ open valve by 5 mm; if tmp<25℃ openvalveby8mm; Stopwhensoilmoisturereaches60%; Notify user by email; END



This circumstance drives the suggested smarter method to provide water to the agricultural fields. The ideal temperature is set as the threshold; a constant learning process grounded on a trial-and-error technique fixes the threshold. The outcomes of the suggested activities are covered in the next part.



4. RESULTS AND DISCUSSION

This part runs and displays the suggested work using Matlab (2019B). The performance of the work is assessed in respect to past published works. The suggested method is evaluated using conventional performance criteria including accuracy, sensitivity, and specificity; its performance is then compared with that of present classifiers like k-NN, Relevant Vector Machine (RVM), and Support Vector Machine (SVM). The results of experiments show SVM beats RVM. The accuracy, sensitivity, and specificity metrics are computed using the following formulae:

                                                                                              (1.5)

                                                                                                              (1.6)



                                                                                                               (1.7)



Where frates are respectively S𝑝, 𝑆𝑛, Fp, Fn. Different classifiers including k-NN, RVM, and SVM are shown in the graphs below.

Figure 2

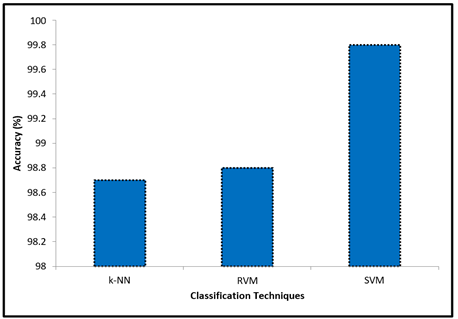

Figure 2 Accuracy Rate Analysis



Evaluated and contrasted with different classification methods including k-NN and RVM is the accuracy rate of the SVM classification strategy. SVM performs more effectively than the related methods.

Closely followed by the RVM classifier, which has a rate of 98.8 percent accuracy, the SVM classifier gets a rate of 99.8 percent accuracy. The sensitivity rate of the recommended method is shown graphically below.

Figure 3

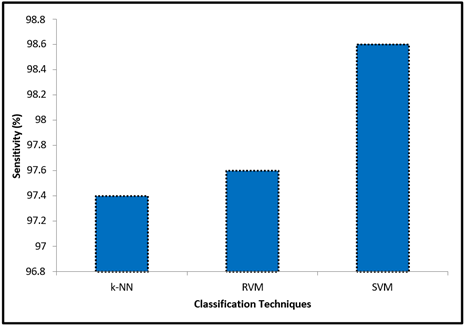

Figure 3 Sensitivity Rate Analysis



The sensitivity of the proposed method is assessed and found to be appropriate with respectable rates. The RVM classifier shows 97.4% while the SVM displays 98.6% as the sensitivity. The sensitivity rates indicate some variations even if the SVM and RVM classifier accuracy rates are more near to one another.

The low number of false negatives provides the justification for the greater sensitivity rates of ensemble classification. Figure 4 shows the specificity rate analysis of the recommended strategy.

Figure 4

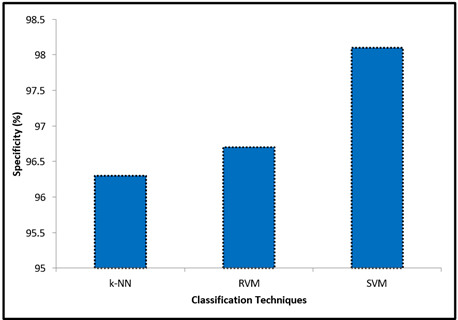

Figure 4 Specificity Rate Analysis



The SVM works better with the highest specificity rate according the specificity rate study. Following the SVM with 98.1 percent as the specificity rate comes the RVM classifier with 96.7 percent.

Higher accuracy, sensitivity, and specificity rates abound from the SVM classifier. The time needed for the many categorizing techniques is compiled in the following table.

Figure 5

Figure 5 Time Consumption Analysis



Thus, the performance of the work is investigated and it is discovered that the SVM beats the related classifiers. The following shows the projected work's energy usage analysis.

 Figure 6

Figure 6 Energy Consumption Analysis



On accepted performance criteria, the experimental results show that the suggested strategy beats similar solutions. The crop output may be improved as the soil moisture is kept constant all through. Besides water waste is also avoided as the water supply is started upon demand. The chapter is summed up in the next part.



5. Conclusion

This paper proposes a smart irrigation system using IoT and a supervised learning algorithm for contemporary agriculture. The sink node gathers the data while the suggested work uses numerous field sensors. Supervised learning algorithm controls the IoT-enabled water valve. The performance of the task is assessed with respect to numerous benchmark criteria.           For precision agriculture, a hybrid ML system is put forth to forecast soil moisture. Different climatic factors, such as air temperature, moisture content, soil temperature, and soil humidity, all affect how moist the soil is. For the purpose of predicting soil moisture in this suggested work, weather data is used. In order to forecast soil moisture for the upcoming days for optimal irrigation, this work takes into account both field sensor data and precipitation information. The suggested technique predicts soil moisture with a reasonable degree of accuracy and a low rate of error. The deep learning technique will be used in the future to forecast soil moisture for intelligent irrigation.
