0BKINETICS CONSIDERATION OF ETHANOL LEAVES EXTRACT OF COSTUS LUCANUSIANUS AS GREEN CORROSION INHIBITOR FOR MILD STEEL AND ALUMINIUM IN HCL SOLUTIONObot, A. S 1, Boekom,
E. J 1, Ita, B. N 1, Utam, E. C 1 1B1 Department of Chemistry, University of Uyo, P.M.B. 1017, Uyo, Akwa Ibom State, Nigeria. |
|
||
|
|||
Received 6 December2021 Accepted 17 December2021 Published 31 January2022 Corresponding Author Obot,
A. S, anneobott@gmail.com DOI 10.29121/granthaalayah.v10.i1.2022.4461 Funding:
This
research received no specific grant from any funding agency in the public,
commercial, or not-for-profit sectors. Copyright:
© 2022
The Author(s). This is an open access article distributed under the terms of
the Creative Commons Attribution License, which permits unrestricted use, distribution,
and reproduction in any medium, provided the original author and source are
credited. |
ABSTRACT |
|
|
The
chemical composition of ethanol leaves extract of Costus lucanusianus
(ELECL) was evaluated by Gas Chromatography-Mass Spectroscopy (GC-MS) for
corrosion inhibition of mild steel and aluminium in 1 M HCl using weight loss
technique. A total of 18 compounds were identified. 11-Octadecenoic acid,
methyl ester (30.01%); 9-Octadecenoic acid, 12-hydroxy-, methyl ester,
[R-(Z)]- (25.53%); 9,12-Octadecadienoic acid, methyl ester (13.52 %); and
Hexadecanoic acid, methyl ester (13.14%) were the major counpounds. The
weight loss analysis showed ELECL as an effective corrosion inhibitor at low
temperatures for mild steel and aluminium. At 1 g/l concentration, the
inhibitory action of the extracts attained an inhibition efficiency of 94 %
and 79 % in 1 g/l at 313 K and 303 K for mild steel and aluminium
respectively. The extracts inhibitor compounds covered the metal surfaces
following Freundlich adsorption isotherm. The enthalpy change showed an
endothermic process while the entropy chnage showed an orderly adsorption of
the inhibitor molecules on the metal surfaces. |
|
||
Keywords: Corrosion,
Inhibition, Gas Chromatography-Mass Spectroscopy, Adsorption Isotherm,
Corrosion Kinetics 1. INTRODUCTION Corrosion is an
electrochemical process which generally occurs in the presence of oxygen,
aqueous electrolyte solution and moisture. It could be over the entire
surface of a metal or alloy, and it occurs electrochemically between two
different metallic materials or two points on the surface of alloys of
different chemical activity Potgieter (2010). The rate of
corrosion is expressed based on the loss per unit time. The rate at which the
attack takes place is of prime importance and is usually expressed in one of
the two ways: Weight loss per unit area per unit time and decrease in
thickness per unit time (that is, rate of penetration or the thickness of metal)
Geethamani (2019). Inhibition is a
preventive measure against corrosive attack on metallic materials. One of the
extensively studied topics in the field of corrosion is inhibition Geethamani (2019). Corrosion
inhibitors are chemical substances added to a liquid or gas, that decrease
the corrosion rate or prevent corrosion of the metal, when added in small
amounts to the environment in which a metal would corrode. The effectiveness
of a corrosion inhibitor depends on fluid composition, quantity of water, and
flow regime. A common mechanism for inhibiting corrosion involves formation
of a coating, often a passivation layer, which prevents access of the
corrosive substance to the metal. However, |
|
||
corrosion inhibitors are
additives to the fluids that surround the metal Guo et al. (2020).
The phenomenon of adsorption is influenced by the nature and surface charge of the metal and chemical structure of inhibitors. Inhibitors often work by adsorbing themselves on the metallic surface to protect the metallic surface by forming a film. Inhibitors are normally distributed from a solution or dispersion. Some are included in a protective coating formulation. According to Rani and Basu (2012), inhibitors decrease or prevent the reaction of the metal with the media. They reduce the corrosion rate by adsorption of ions/molecules onto metal surface, increasing or decreasing the anodic and/or cathodic reaction, decreasing the diffusion rate for reactants to the surface of the metal and decreasing the electrical resistance of the metal surface.
Literature study showed that numerous plant parts extracts including bark, leave, fruit, peel, seed, root, flower, and even entire plant extracts are widely used as corrosion inhibitors. Out of several extracts, leaves extract generally showed reasonably better protection effectiveness at relatively low concentration Alrefaee et al. (2020). Plants are natural, green, renewable, easy to access, and contain many heterocyclic organics, thereby making it one of the most suitable in replacing conventional toxic inhibitors Li et al. (2021). Consequently, plant extracts as green and effective corrosion inhibitors are wildly explored. The mechanism of action for green inhibitors depends on the structure of the active ingredient. The adsorption of natural corrosion inhibitors on metal surfaces is influenced by a number of factors including nature of metal, testing media, chemical structure of inhibitor, nature of the inhibitor constituents, presence of additives, solution temperature, and solution concentration Verma and Quraishi (2016).
Costus lucanusianus (Figure 1) commonly known as monkey sugarcane is a vigorous grower and a medicinal plant used to treat various ailments in tropical Africa. C. lucanusianus is very similar to Costus afer (bush cane), differing in their hairy leaf sheath. Besides being used as a medicinal plant, it is often used as ornamental for its flowers with showy labellum which last singularly one day only but are continuously produced. In southern Nigeria, Costus afer and C. lucanusianus produce hybrids. The methanol and n-hexane extracts have been reported to act as inhibitors. However, they contained different constituents Obot et al. (2021a), Obot et al. (2021b). Therefore, this study seeks to investigate the constituents of the ethanol extract and its inhibitory potential on mild steel and aluminium in 1 M HCl.
|
Figure 1 Costus lucanusianus plant |
2. MATERIALS AND METHODS
2.1. Sample collection preparation
The fresh leave samples of C. lucanusianus leave were rinsed and dried at room temperature, crushed and ground into fine powder. Extraction with ethanol was performed. 70 g leaves were soaked in 900ml ethanol for 72 hours and filtered. The filtrate was allowed to evaporate completely 40℃ using Stuart Rotatory Evaporator (Re 300) to remove the ethanol solvent. Different weights of the extract were measured and used to prepare five different concentrations (1 g/l, 0.7 g/l, 0.5g/l, 0.2g/l 0.1g/l) in 1 M HCl.
2.2. Coupons
The experiment was conducted on mild steel with the following composition carbon – 0.17%, silicon – 0.26%, manganese – 0.46%, phosphorus – 0.0047%, sulphur – 0.017%, iron – 98.9%) and pure aluminium metal of the type of AA 1060. The coupons with dimensions 4×4 cm was used for weight loss measurements. For the insertion of hook, a hole was drilled at the top centre of the coupons. The coupons were brushed with series of emery paper of variable grades starting with the course (100) to the finest (1200) grade to obtain a smooth surface free of grooves. Each coupon was degreased by washing with ethanol, dried with acetone and stored in a desiccator.
2.3. Gas Chromatography-Mass Spectroscopy (GC-MS)
The chromatographic analysis of the ethanol stem extract of C. lucanusianus was carried out using Agilent technologies 7890A GC and 5977B MSD. The system was equipped with Hp 5-MS capillary standard non-polar column (30 m × 0.25 mm × 0.5 µm film thickness). The temperature was set from 25˚C to 40˚C at 5˚C/min and injection volume was 1 µl. Helium gas was used as a carrier gas with a constant flow rate of 1.0 ml/min. Samples dissolved in methanol were fully scanned at the range of 40-650 m/z and the results were compared by using NIST mass spectral library search programme.
2.4. Weight loss experiment
Weight loss experiment was performed to determine the concentration influence of ethanol extracts of C. lucanusianus on mild steel and aluminium coupons. the coupons were immersed in a test solution containing different concentrations of the extract. The system was maintained at 303 K, 313 K, 323 K and 333 K using a thermostat water bath. After immersion, the coupons were washed with distilled water, scrubbed with bristled brush to remove the corrosion product, cleansed with ethanol, dried in acetone and reweighed at 2-hours intervals progressively for 10-hours. Using Equation 1, the weight loss was taken to be the difference between the initial weight and the weight of the coupons at 2 hours intervals
The corrosion rate (CR), surface coverage (ϴ) and inhibition efficiency (%IE) were computed using the Equation 2, Equation 3, Equation 4 respectively
Where ΔW is the weight loss, S is the total surface area of the coupons and t is the corrosion time (10hrs).
Equation 3
Where CR0 is the corrosion rate in the absence of inhibitor, while CR1 is the corrosion rate in the presence of inhibitor.
3. RESULTS AND DISCUSSION
3.1. Gas Chromatography-Mass Spectroscopy (GC-MS)
The GC-MS analysis of ELECL showed the presence of 18 compounds compounds. Table 1 presents the identified compounds of ELECL with their retention time, pecentage area, compound name, CAS number and structures.
Table 1 Identified components of ELECL |
|||||
S/N |
RT |
Area
% |
Library/ID |
CAS |
Structure |
1 |
13.8268 |
0.38 |
Dodecanoic acid, 2-methyl- |
002874-74-0 |
|
2 |
18.4336 |
0.6 |
Methyl tetradecanoate |
000124-10-7 |
|
3 |
22.219 |
0.71 |
7-Hexadecenoic acid, methyl ester, (Z)- |
056875-67-3 |
|
4 |
22.6947 |
13.14 |
Hexadecanoic acid, methyl ester |
000112-39-0 |
|
5 |
25.2655 |
1.08 |
Linoelaidic acid |
000506-21-8 |
|
6 |
25.9475 |
13.52 |
9,12-Octadecadienoic acid, methyl ester |
002462-85-3 |
|
7 |
26.0928 |
30.01 |
11-Octadecenoic acid, methyl ester |
052380-33-3 |
|
8 |
26.1716 |
1.76 |
9-Octadecenoic acid (Z)-, methyl ester |
000112-62-9 |
|
9 |
26.5705 |
6.97 |
Methyl stearate |
000112-61-8 |
|
10 |
26.8931 |
1.6 |
9,12-Octadecadienoic acid (Z, Z)-,
methyl ester |
000112-63-0 |
|
11 |
29.5725 |
25.53 |
9-Octadecenoic acid, 12-hydroxy-, methyl
ester, [R-(Z)]- |
000141-24-2 |
|
12 |
29.6634 |
0.8 |
7-Octadecenoic acid, methyl ester |
057396-98-2 |
|
13 |
32.474 |
0.39 |
9,17-Octadecadienal, (Z)- |
056554-35-9 |
|
14 |
32.5547 |
1.41 |
2-Methyl-Z, Z-3,13-octadecadienol |
1000130-90-5 |
|
15 |
36.1053 |
1.05 |
9,17-Octadecadienal, (Z)- |
056554-35-9 |
|
16 |
36.1314 |
0.88 |
9,12-Octadecadien-1-ol, (Z, Z)- |
000506-43-4 |
|
17 |
38.2586 |
0.09 |
9-Octadecenal, (Z)- |
002423-10-1 |
|
18 |
38.3987 |
0.08 |
Hexanoic acid, heptadecyl ester |
1000282-83-9 |
|
The identified compounds contain oxygen as a heteroatom in their structures. This property suggests the use of the leave extract of C. lucanusianus as corrosion inhibitor. 11-Octadecenoic acid, methyl ester (30.01%); 9-Octadecenoic acid, 12-hydroxy-, methyl ester, [R-(Z)]- (25.53%); 9,12-Octadecadienoic acid, methyl ester (13.52 %); and Hexadecanoic acid, methyl ester (13.14%) was identified as the predominant compounds.
4. WEIGHT LOSS ANALYSIS
The weight loss experiment was carried out to determine ELECL shielding proficiency at consecutively increasing concentrations. The calculated values of corrosion rate (CR), degree of surface coverage (Ө) and inhibition efficiency (% IE) of mild steel and aluminium at 303 K to 333 K in the presence and absence of ELECL are tabulated in Table 2.
The data shows that the inhibition process was a
concentration dependent one. While the concentration of the extracts increased,
the corrosion rate decreased. Therefore, the corrosion inhibition activity of ELECL
advanced with concentration; and showed maximum inhibitive effect of 94% and
79% for mild steel and aluminium, respectively at low temperature. The results
also suggest larger corrosion protection of the steel surface that is confirmed
by the rising value of surface coverage (θ) Jesudoss
et al. (2020). The ability of the
extract’s natural chemical constituents to adsorb onto the metal surface is mainly
the reason for its corrosion resistance ability Zaher et
al. (2021). The proportion of
surface covered with adsorbed extract molecules determines the amount of
corrosion protection. Therefore, as the adsorbed molecules of extract grow on
the metal surface, its concentration increases, thereby making the ϴ
value a critical variable since it reflects the percentage of metal substrate
surface covered by extract molecules Zaher et
al. (2021)
Table 2 Calculated values of corrosion rate (CR), degree of surface coverage (Ө) and inhibition efficiency (% IE) of mild steel and aluminium at 303 K to 333 K in the presence and absence of ELECL |
||||||||||||
303 K |
313 K |
323 K |
333 K |
|||||||||
Conc. (g/L) |
CR g/cm2h× 10-3 |
ϴ |
%IE |
CR g/cm2h× 10-3 |
ϴ |
%IE |
CR g/cm2h× 10-3 |
ϴ |
%IE |
CR g/cm2h× 10-3 |
ϴ |
%IE |
MILD STEEL |
||||||||||||
Blank |
1.93 |
- |
- |
10.93 |
- |
- |
13.96 |
- |
- |
17.05 |
- |
- |
0.1 |
1.87 |
0.03 |
3 |
6.61 |
0.39 |
39 |
11.88 |
0.15 |
15 |
16.34 |
0.04 |
4 |
0.2 |
1.81 |
0.06 |
6 |
6.33 |
0.42 |
42 |
9.9 |
0.29 |
29 |
14.72 |
0.14 |
14 |
0.5 |
1.35 |
0.3 |
30 |
5 |
0.54 |
54 |
5.69 |
0.59 |
59 |
13.59 |
0.2 |
20 |
0.7 |
1.17 |
0.39 |
39 |
1.71 |
0.84 |
84 |
5.3 |
0.62 |
62 |
9.39 |
0.45 |
45 |
1 |
0.62 |
0.68 |
68 |
0.61 |
0.94 |
94 |
2.15 |
0.85 |
85 |
5.4 |
0.68 |
68 |
ALUMINIUM |
||||||||||||
Blank |
5.35 |
- |
- |
8.82 |
- |
- |
11.42 |
- |
- |
12.28 |
- |
- |
0.1 |
3.27 |
0.39 |
39 |
5.7 |
0.35 |
35 |
9.49 |
0.17 |
17 |
9.52 |
0.23 |
23 |
0.2 |
3.17 |
0.41 |
41 |
5.42 |
0.39 |
39 |
8.66 |
0.24 |
24 |
9.32 |
0.24 |
24 |
0.5 |
2.24 |
0.58 |
58 |
5.22 |
0.41 |
41 |
8.1 |
0.29 |
29 |
8.51 |
0.31 |
31 |
0.7 |
2.03 |
0.62 |
62 |
4.11 |
0.53 |
53 |
7.84 |
0.31 |
31 |
8.53 |
0.31 |
31 |
1 |
1.13 |
0.79 |
79 |
3.85 |
0.56 |
56 |
5.46 |
0.52 |
52 |
3.98 |
0.68 |
68 |
4.1. Effectt of temperature
The weight loss analysis of mild steel and aluminium
was studied in the temperature range 303 K – 333 K in inhibited and uninhibited

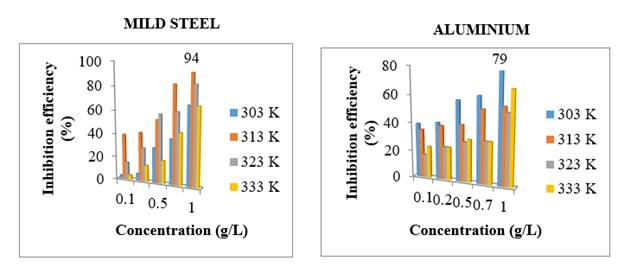

solutions. Figure 2 shows the variation of
inhibition efficiencies of ELECL with concentration and temperature for mild
steel and aluminium. The
inhibition efficiency (%IE) for mild steel and aluminum increased with
increasing concentrations of the extract. The maximum inhibition efficiencies
(94 % and 79 %) at 1 g/l were attained at 313 K and 303 K for mild steel and
aluminium, respectively. This indicates that the extract molecules are
adsorbed on metal-solution interface forming a protected layer on the metal
surface that hindered its corrosion Fouda et
al. (2021). However, decrease in the extract
efficiency with increasing temperature indicates desorption of extract
molecules on the metal surfaces. This behaviour is consistent with physical adsorption
mechanism Ituen et
al. (2021)
|
Figure 2 Variation
of inhibition efficiencies of ELECL with concentration and temperature for
mild steel and aluminium |
4.2. Mechanism of adsorption
The inhibitor molecules adsorption onto metal surface is divided into chemical and physical adsorption Tan et al. (2021). This process gives the interation details between the inhibitors and metal surfaces. However, while physical adsorption involves interaction between the charged corrosion inhibitor and the charged metal, chemical adsorption involves the formation of coordination bonds with the metal unoccupied orbitals with lone pairs of heteroatoms in the inhibitor molecule. Variety of adsorption isotherms including Langmuir, Temkin, Fruendlich and El-Awady isotherms were used to fit the weight loss data. These isotherms were expressed using the following equations respectively Ituen and Udo (2012):
Equation 5
Equation 6
Equation 7
Equation 8
Where C is the concentration, Kads is the adsorption equilibrium constant, a is the molecular interaction parameter used to predict the nature of interactions in the adsorbed layer and ϴ is the surface coverage.

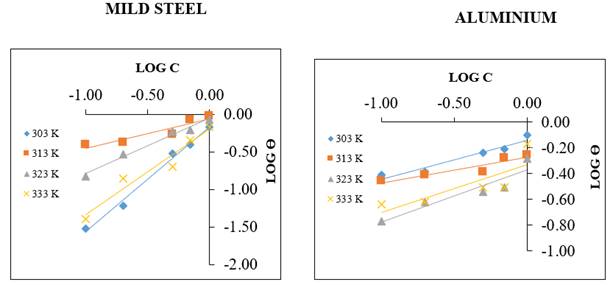

The freundlich adsorption isotherm (Figure 3)
provided the best fit and
described the adsorption behaviour of the extracts of C. lucanusianus presented in Table 3. Investigation
of the adsorption characteristics as provided in Table 3, showed that the inhibitor
exhibited more of a monolayer chemical adoption Ugi (2020) as data fit accurately to the isotherm as seen in the
correlation coefficient obtained
from the plots (Figure 3) which are in the range (0.8767
≤ R2 ≤ 0.9904) for mild steel and (0.6486≤ R2
≤ 0.9355) for aluminium.
The value
of was obtained by following: Zhang et
al. (2018), Li et al. (2018), Fatima
et al. (2019)
Equation 9
the
negative values of indicate a spontaneous adsorption of the
inhibitor molecules on the metal surfaces. The value determines the type of adsorption. When
the value is greater than -20 kJ/mol, it reveals that the charged corrosion
inhibitor and the charged metal have physical adsorption through electrostatic
attraction Sadeghi
et al. (2019). When the value is less than -40 kJ/mol, it
reveals that the interaction between the inhibitor molecules and the metal
surface is chemisorption Biswas et al. (2018). When the value is between -20
kJ/mol and -40 kJ/mol, it reveals that it is a mixed physical and chemical adsdorption
process Zhang et al. (2018). From Table 3, it can be seen that the values are greater than -20 kJ/mol at varied
temperatures, therefore the mechanism of adsorption followed by ELECL is
believed to be physical adsorption.
Table 3 Adsorption parameters from Freundlich isotherm for mild steel and aluminium in different concentrations of ELECL at 303 K to 333 K |
||||
Inhibitor |
Temp (K) |
Adsorption parameters |
||
Kads
(mol/l) |
ΔG (kJ/mol) |
R2 |
||
Mild steel |
303 K |
0.8458 |
-3.7163 |
0.9904 |
313 K |
0.9409 |
-4.2708 |
0.8767 |
|
323 K |
0.9444 |
-4.4237 |
0.9836 |
|
333 K |
0.8156 |
-3.9387 |
0.9456 |
|
Aluminium |
303 K |
0.8711 |
-3.8277 |
0.9355 |
313 K |
0.7632 |
-3.4642 |
0.8578 |
|
323 K |
0.6904 |
-3.2337 |
0.8695 |
|
333 K |
0.72 |
-3.4772 |
0.6486 |
|
Figure 3 Freundlich adsorption
isotherm plot (C/ϴ versus C) for mild steel and aluminium |
4.3. Corrosion kinetic analysis
The Arrhenius and transition state equations was used to consider the kinetic parameters of ELECL adsorption on mild steel and aluminium surfaces. The activation energy Ea, enthalpy and entropy of activation were calculated using the Arrhenius and transition state equations, respectively as shown:
Equation 10
Equation 11
Where CR denotes the corrosion rate of mild steel and aluminium determined from the weight loss experiment, A denotes the pre-exponential constant, Ea denotes the apparent activation energy, R denotes the universal gas constant, T denotes the temperature, N denotes the Avogadro’s number, h drenotes Planck’s constant, ΔH denotes enthalpy change, and ΔS denotes entropy change.
The activation energies were obtained from the slope of the linear plot of log CR against 103/T for mild steel and aluminium in 1 M HCl in the absence and presence of different concentration of ELECL and the data presented in Table 4 show an increasing trend. An increase in the Ea value indicated that inhibitor molecules physically adsorped on the metal surfaces. The increase in Ea value with the addition of the inhibitor that suggests electrostatic metal-inhibitor interactions about et al. (2021) and suggests the increase of the energy barrier for the corrosion reaction, resulting in reduced rate of corrosion process Verma and Quraishi (2016).
|

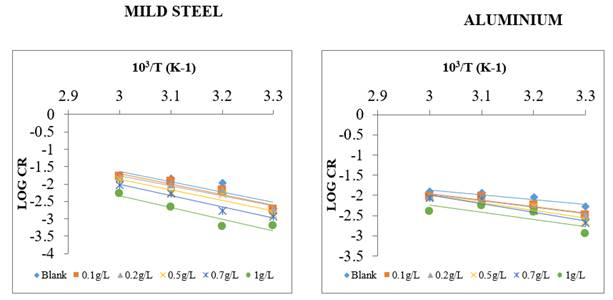

Figure 4 Arrhenius plot
for mild steel and aluminium in different concentrations of ELECL |
Table 4 Activation parameters from Transition State equation for mild steel in different concentrations of ELECL at 303 K to 333 K |
||||
Coupons |
Conc. (g/L) |
Kinetic parameters |
||
Ea (J/mol) |
ΔH (J/mol |
ΔS (J/mol.K) |
||
Mild steel |
Blank |
24.49 |
53.7772 |
-115.8147 |
0.1 |
25.62 |
56.3949 |
-109.106 |
|
0.2 |
24.33 |
53.4151 |
-119.2444 |
|
0.5 |
25.52 |
56.1602 |
-113.023 |
|
0.7 |
26.62 |
58.6897 |
-108.4846 |
|
1 |
28.07 |
62.0341 |
-104.4608 |
|
Aluminium |
Blank |
9.93 |
20.2558 |
-220.8304 |
0.1 |
13.43 |
28.305 |
-198.3267 |
|
0.2 |
13.38 |
28.2034 |
-199.0475 |
|
0.5 |
16.02 |
34.2865 |
-181.0089 |
|
0.7 |
17.87 |
38.5365 |
-168.3864 |
|
1 |
14.86 |
31.6131 |
-193.8787 |
The data in Table 4 obtained from the transition state plot of log CR/T versus 103/T (Figure 5) for mild steel and aluminium in 1 M HCl in the absence and presence of different concentration of ELECL show positive values of ΔH indicating an endothermic reaction. Thus, implying that the inhibitors have the potential of influencing the incoming energy in the system resulting in higher potential energy and lower kinetic energy, hence breaking up the intermolecular force between the molecules, leading to a slower corrosion reaction rate Srinivasulu and Kasthuri (2017), Gadow and Motawea (2017). The negative values of ΔS indicate a decrease in the disorderliness of the system compared with the blank Azzaoui et al. (2017) and therefore an increased orderliness in the system as a result of an orderly adsorption of the inhibitor molecules freely moving in the bulk solution onto the mild steel and aluminium metal surfaces which often indicates an associative mechanism in which both the molecules of the extracts and ions of the metals form a single activated complex, hence creating a better inhibition Cookey et al. (2018)
|

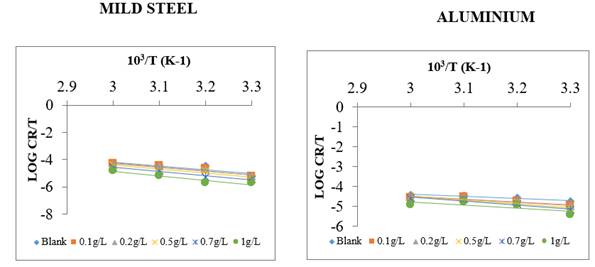

Figure 5 Transition state plot for
mild steel and aluminium in different concentrations of ELECL |
CONCLUSION
The Ethanol leave extract of Costus lucanusianus (ELECL) was characterized by GC-MS analysis. 11-Octadecenoic acid, methyl ester (30.01%); 9-Octadecenoic acid, 12-hydroxy-, methyl ester, [R-(Z)]- (25.53%); 9,12-Octadecadienoic acid, methyl ester (13.52 %); and Hexadecanoic acid, methyl ester (13.14%) was identified as the predominant compounds, largely responsible for the inhibition. The inhibition study was carried out using weight loss method. The inhibition efficiency reached values of 94 % and 79 % for mild steel and aluminium respectively at 1g/l concenentration. The Freundlich adsorption showed that the adsorption process of ELECL was physisorption, the enthalpy showed an endothermic process while the entropy values showed an orderly adsorption of the inhibitor molecules onto the metal surfaces.
REFERENCES
Abbout, S., Chebabe, D., Zouarhi, M., Rehioui, M., Lakbaibi, Z. and Hajjaji, N. (2021). Ceratonia Siliqua L seeds extract as eco-friendly corrosion inhibitor for carbon steel en 1 M HCl : Characterization, electrochemical, surface analysis, and theoretical studies. Journal of Molecular Structure, 1240 : 130611. Retrieved from https://doi.org/10.1016/j.molstruc.2021.130611
Alrefaee, S. H., Rhee, K. Y., Verma, C., Quraishi, M. A. and Ebenso, E. E. (2020). Challenges and advantages of using plant extract as inhibitors in modern corrosion inhibition systems : Recent advancements. Journal of Molecular Liquids, 114666. Retrieved from https://doi.org/10.1016/j.molliq.2020.114666
Azzaoui, K., Mejdoubi, E., Jodeh, S., Lamhamdi, A., Rodriguez-Castello' n, E., Algarra, M., Zarrouk, A., Errich, A., Salghi, R. and Lgaz, H. (2017). Eco friendly green inhibitor Gum Arabic (GA) for the corrosion control of mild steel in hydrochloric acid medium. Corrosion Science, 129 :70-81. Retrieved from https://doi.org/10.1016/j.corsci.2017.09.027
Biswas, A., Mourya, P., Mondal, D., Pal, S. and Udayabhanu, G. (2018). Grafting effect of gum acacia on mild steel corrosion in acidic medium : gravimetric and electrochemical study, Journal of Molecular Liquid, 251 : 470-479. Retrieved from https://doi.org/10.1016/j.molliq.2017.12.087
Cookey, G. A., Tambari, B. L. and Iboroma, D. S. (2018). Evaluation of corrosion inhibition potentials of green tip forest lily (Clivia no-bilis) leaves extract on mild steel in acid media. Journal of applied Sciences and Environmental Management, 22(1) :90-94. Retrieved from https://doi.org/10.4314/jasem.v22i1.16
Fatima, S., Sharma, R., Asghar, F., Kamal, A., Badshah, A. and Kraatz, H.-B. (2019). Study of new amphiphiles based on ferrocene containing thioureas as efficient corrosion inhibitors : gravimetric, electrochemical, SEM and DFT studies. Journal of Industrial and Engineering Chemistry, 76 : 374-387. Retrieved from https://doi.org/10.1016/j.jiec.2019.04.003
Fouda, A. S., Mohamed O. A. and Elabbay, H. M. (2021). Ferula hermonis Plant Extract as Safe Corrosion Inhibitor for Zinc in Hydrochloric Acid Solution. Journal of Bio- and Tribo-Corrosion, 7 :135. Retrieved from https://doi.org/10.1007/s40735-021-00570-z
Gadow, H. S. and Motawea, M. M. (2017). Investigation of the corrosion inhibition of carbon steel in hydrochloric acid solution by using ginger roots extract. Royal Society of Chemistry Advances, 7(40) :24576-24588. Retrieved from https://doi.org/10.1039/C6RA28636D
Geetha, K. and Udhayakumar, R. (2021). A green tactic for inhibition of corrosion on mild steel in bore well water by aqueous extract of Bauhinia Blakeana leaves. Indian Journal of Chemical Technology, 28 : 36-46. Retrieved from http://nopr.niscair.res.in/handle/123456789/56533
Geethamani, P. (2019). Corrosion Inhibitors. In : A. Singh, (Ed.). Corrosion Inhibitors. Intechopen Books, London, United Kingdom, 24p.
Guo, L., Tan, B., Li, W., Li, Q., Zheng, X. and Bassey, I. (2020). Banana leaves water extracts as inhibitor for X70 steel corrosion in HCl medium. Journal of Molecular Liquids, 327 : 114828-114839. Retrieved from https://doi.org/10.1016/j.molliq.2020.114828
Ituen, E. I. and Udo, U. E. (2012). Phytochemical profile, adsorption and inhibitive behaviour of costus afer extracts on aluminium corrosion in hydrochloric acid. Pelagia Research Library, 3(6) : 1394-1405. Retrieved from http://www.pelagiaresearchlibrary.com/der-chemica-sinica/vol3-iss6/DCS-2012-3-6-1394-1405.pdf
Ituen, E., Dim, C. and BoEKOM, E. (2021). Orange Peel Extract Mediated Silver Nanofluid a Corrosion Inhibitor for X80 Steel in Simulated Oilfield Scale Dissolver. Journal of Metallic Material Research, 04(01), 41-45. Retrieved from https://doi.org/10.30564/jmmr.v4i1.3621
Jesudoss, N. R., Meby, H. R., Tezeghdenti, S., Mukesh, A. M., Olfa, K. and Nikolova, M. P. (2020). Aerva lanata flowers extract as green corrosion inhibitor of low ‑ carbon steel in HCl solution : an in vitro study. Chemical Papers, 0123456789. Retrieved from https://doi.org/10.1007/s11696-020-01361-5
Li, H., Qiang, Y., Zhao, W. and Zhang, S. (2021). A green Brassica oleracea L extract as a novel corrosion inhibitor for Q235 steel in two typical acid media. Colloids and Surfaces A : Physicochemical and Engineering Aspects, 616 : 126077. Retrieved from https://doi.org/10.1016/j.colsurfa.2020.126077
Li, X., Deng, S., Lin, T., Xie, X. and Du, G. (2018). Cassava starch-sodium allylsulfonate-acrylamide graft copolymer as an effective inhibitor of aluminum corrosion in HCl solution. Journal of Taiwan Institute of Chemical Engineers, 86 : 252-269. Retrieved from https://doi.org/10.1016/j.jtice.2018.03.002
Obot, A. S., BoEKOM, E. J., Obot, I. B., Ita, B. N. and Azubuike, A. C. (2021a). Chemical evaluation and quantum analysis of methanol extracts of Costus lucanusianus as corrosion inhibitors for mild steel and aluminium en 1 M HCl solution. Elixir Corrosion and Dye, 159 : 55648-55660.
Obot, A. S., BoEKOM, E. J., Ugi, B. U., Essien, K. E. and Jonah, N. B. (2021b). Thermodynamic investigation and quantum chemical evaluation of n-hexane extracts of Costus lucanusianus as corrosion inhibitors for mild steel and aluminum en 1 M HCl solution. Journal of Applied Physical Science International, 13(3) : 6-27.
Potgieter, J. H. (2010). Corrosion of passive alloys : The effect of noble metal additions. Shreir's Corrosion, 3 : 2224-2249. Retrieved from https://doi.org/10.1016/B978-044452787-5.00188-8
Rani, B. E. A. and Basu, B. B. J. (2012). Green inhibitors for corrosion protection of metals and alloys : An overview. International Journal of Corrosion, 2012 : 1687-9325. Retrieved from https://doi.org/10.1155/2012/380217
Sadeghi E. R., Amirnasr, M., Meghdadi, S., Talebian, M., Farrokhpour, H. and Raeissi, K. (2019). Carboxamide derivatives as new corrosion inhibitors for mild steel protection in hydrochloric acid solution, Corrosion Science, 151 : 190-197. Retrieved from https://doi.org/10.1016/j.corsci.2019.02.019
Srinivasulu, A. and Kasthuri, P. K. (2017). Study of inhibition and adsorption properties of mild steel corrosion by expired pharmaceutical gentamicin drug in hydrochloric acid media. Oriental Journal of Chemistry, 33(5) : 2616-2624. Retrieved from https://doi.org/10.13005/ojc/330559
Tan, B., Xiang, B., Zhang, S., Qiang, Y., Xu, L., Chen, S. and He, J. (2021). Papaya leaves extract as a novel eco-friendly corrosion inhibitor for Cu in H2SO4 medium. Journal of Colloid and Interface Science, 582 : 918-931. Retrieved from https://doi.org/10.1016/j.jcis.2020.08.093
Ugi, B. U. (2020). Effects of Nitrogen Atoms in Vindoline Alkaloids as Fe2+ Ions Inhibitor in Corrosion of Gray Iron in Dilute HCl Environment : Potentiodynamic Polarization, Gravimetric Analysis and SEM. Journal of Materials and Environmental Science, 11(8) :1274-1285.
Verma, C. and Quraishi, M. A. (2016). Adsorption behavior of 8,9-bis (4 (dimethyl amino) phenyl) benzo [4,5] imidazo[1,2-a] pyridine-6,7-dicarbonitrile on mild steel surface in 1M HCl. Journal of the Association of Arab Universities for Basic and Applied Sciences, 22(1) : 55-61. Retrieved from https://doi.org/10.1016/j.jaubas.2016.01.003
Zaher, A., Aslam, R., Lee, H., Khafouri, A., Boufellous, M., Alrashdi, A. A., El-Aoufir, Y., Lgaz, H. and Ouhssine, M. (2021). A combined computational and electrochemical exploration of the Ammi visnaga L. extract as à green corrosion inhibitor for carbon steel in HCl solution. Arabian Journal of Chemistry, 15(2), 103573. Retrieved from https://doi.org/10.1016/j.arabjc.2021.103573
Zhang, K., Yang, W., Xu, B., Chen, Y., Yin, X., Liu, Y. and Zuo, H. (2018). Inhibitory effect of konjac glucomanan on pitting corrosion of AA5052 aluminium alloy in NaCl solution. Journal of Colloid Interface Science. 517 : 52-60 Retrieved from https://doi.org/10.1016/j.jcis.2018.01.092
This work is licensed under a: Creative Commons Attribution 4.0 International License
© Granthaalayah 2014-2022. All Rights Reserved.
