Smart Rainwater Alert and Prediction System Based on Machine Learning and Sensor Integration



Anmol Aggarwal ¹, Kushaggr ¹, Abhay Kumar¹, Yash¹, Trilok Rawat¹



¹ Computer Science and Engineering, Echelon Institute of Technology, Faridabad, India



1. INTRODUCTION

Management of water resources and proper utilization have become increasingly important in recent years due to rising concerns over water scarcity and environmental sustainability Mishra (2019). In this context, the role of rain sensors has gained attention, particularly for enabling efficient rainwater harvesting and conservation practices. Rain sensors detect rainfall and trigger alerts, allowing users to take prompt action to collect and store rainwater for future use Singh and Jain (2020). Rainwater harvesting, a sustainable practice, involves collecting and channeling rainwater from surfaces like rooftops into tanks, pits, aquifers, or reservoirs through percolation, ultimately helping to recharge groundwater levels Lopes (2021).

Rain alarms are simple yet highly effective applications of rain sensors, designed to emit an alert sound when rainwater is detected. The systems developed for this purpose typically employ low-cost, reliable sensor modules available in the market Verma and Roy (2018). Their affordability and ease of integration make them particularly useful for domestic, agricultural, and industrial applications where early detection of rain can have significant benefits, such as protecting electronic equipment, automating irrigation systems, and promoting water conservation Kumar and Patel (2019).

A wide variety of rain sensors exist today, and understanding their differences is crucial for selecting the appropriate device for a given application. Some rain sensors offer cost-effective solutions but may lack durability, while others are robust and suitable for long-term deployment in harsh conditions Wilson (2020). Selecting the right type of rain sensor depends on the application’s sensitivity, durability, and cost constraints, highlighting the importance of understanding both the advantages and limitations of available sensor technologies Sharma (2021).



2. Types of Rain Sensors

2.1. Resistive Rain Sensor

The resistive rain sensor features a plate where nickel is deposited in the form of conductive lines. It operates on the principle of resistance change: when the sensor is dry, the resistance across the contacts is very high (open circuit); when water contacts the surface, it creates a resistive bridge between the conductive lines Lee (2020). This difference in resistance allows the circuit to distinguish between dry and wet conditions, facilitating rain detection. Resistive rain sensors are cost-effective and widely used for basic rain detection applications Gupta and Khanna (2021).



2.2. Capacitive Rain Sensor

Capacitive rain sensors, commonly used in industrial and commercial sectors, detect rainfall based on changes in capacitance caused by water droplets on a top sensing plate Chen and Wang (2018). These sensors offer higher durability and resistance to environmental wear compared to resistive types. Capacitive sensors are ideal for weather telemetry systems and environments requiring minimal maintenance Dutta (2022).



2.3. Mechanical Rain Sensor

Mechanical rain sensors, such as those developed by Rain Bird Corporation, use a physical mechanism based on the weight of accumulated rainwater to trigger an internal switch Rain Bird Corporation (2019). This approach is highly reliable and simple, making mechanical sensors suitable for applications where ruggedness and simplicity are prioritized Hossain (2019).



2.4. Optical Rain Sensor for Cars

Optical rain sensors are compact devices typically installed behind vehicle windshields, near the rearview mirror Martin (2019). These sensors detect the presence of rain through changes in light transmission caused by raindrops on the glass surface. They automatically control windshield wipers, improving driving safety during rainy conditions Kim and Park (2020).







2.5. Rain Sensor with Sounds

Sound-based rain sensors detect the vibrations generated by raindrops hitting a surface Zhao and Huang (2020). The vibrations are picked up by the sensor and converted into electrical signals to determine the presence of rain. This method offers an innovative approach to rain detection, especially in environments where optical or resistive sensors might be less effective Deshmukh and Tripathi (2021).



3. LITERATURE REVIEW

The management of water resources has become a global priority due to increasing water scarcity and the growing demand for sustainable water practices. Researchers have explored various techniques for efficient water conservation, with rainwater harvesting emerging as a critical solution Mishra (2019). Mishra emphasized the importance of integrating simple technologies such as rain sensors to aid in rainwater collection and groundwater recharge initiatives Mishra (2019). Singh and Jain further noted that rain detection systems play a pivotal role in early rain prediction, allowing timely collection and storage of rainwater, which is especially beneficial for domestic and agricultural applications Singh and Jain (2020).

Rain sensors have evolved significantly, with different types tailored to various applications. Lopes discussed traditional rainwater harvesting techniques but stressed the need for automation through sensor-based detection systems to enhance efficiency Lopes (2021). Verma and Roy introduced the concept of low-cost rain detection systems using basic electronic circuits, highlighting their potential for smart city applications where cost-effective and scalable solutions are critical Verma and Roy (2018). Their work underscored the practicality of simple rain alarm circuits, like those employing a 555 timer IC for triggering an alert when rainfall is detected.

The diversification of rain sensor technologies has attracted substantial attention. Kumar and Patel provided an extensive survey on the use of rain sensors across home automation, agriculture, and vehicle systems, noting that the selection of appropriate sensor types is crucial for system reliability Kumar and Patel (2019). Wilson compared resistive and capacitive rain sensors, finding that while resistive sensors are more affordable and simple to implement, capacitive sensors offer greater durability and sensitivity Wilson (2020). This comparison is vital when selecting sensors for long-term deployment in harsh environments.

Understanding the characteristics and limitations of various rain sensors is essential for optimal system design. Sharma discussed the key parameters to consider when choosing a rain sensor, such as sensitivity, durability, cost, and environmental resistance Sharma (2021). Lee described the design and working of resistive rain sensors, where the detection mechanism is based on changes in surface resistance due to water droplets Lee (2020). Gupta and Khanna evaluated the performance of resistive rain sensors integrated into IoT systems, concluding that these sensors provide satisfactory results under moderate climatic conditions but may suffer from corrosion issues over time Gupta and Khanna (2021).

Capacitive rain sensors have emerged as a promising alternative for industrial applications. Chen and Wang explained the working principle of capacitive sensors, emphasizing their robustness and resistance to corrosion, which makes them suitable for prolonged outdoor use Chen and Wang (2018). Furthermore, Dutta outlined advances in capacitive sensing for meteorological monitoring, noting improvements in accuracy and response time in newer sensor models Dutta (2022). Mechanical rain sensors, such as those developed by Rain Bird Corporation, offer simplicity and mechanical robustness but may require regular maintenance Rain Bird Corporation (2019), Hossain (2019).

In the automotive sector, optical rain sensors have revolutionized rain detection, particularly for windshield wiper automation. Martin discussed the design considerations for optical rain sensors in cars, pointing out their compact size and high accuracy Martin (2019). Kim and Park proposed advanced rain detection algorithms that improve the performance of optical sensors even under varied lighting and weather conditions Kim and Park (2020). These developments show how rain sensor technologies have diversified to serve multiple domains effectively.

Another novel approach in rain detection involves sound-based sensors. Zhao and Huang proposed a system where the sound of rain hitting a surface is used to detect precipitation events with high accuracy Zhao and Huang (2020). Deshmukh and Tripathi further explored acoustic sensing techniques for environmental monitoring, suggesting that sound-based rain sensors could complement traditional optical and mechanical sensors, especially in regions with heavy noise pollution Deshmukh and Tripathi (2021).

Overall, the literature reveals that integrating sensor-based rain detection with machine learning models like LSTM (Long Short-Term Memory) and Prophet enhances predictive capabilities, offering real-time alerts and improved water conservation practices. However, the success of such systems depends heavily on the appropriate choice of sensors, robust integration of predictive algorithms, and the adaptability of the system to environmental variables.



4.  PROPOSED MODEL

The proposed system, titled Smart Rainwater Alert and Prediction System Based on Machine Learning and Sensor Integration, aims to combine real-time rain detection with short-term rain forecasting. It leverages both hardware-based rain sensors and machine learning models such as LSTM (Long Short-Term Memory) and Prophet to provide a dual approach: immediate rain alerts and future rain predictions. The working principle is simple yet powerful—whenever the rain sensor detects precipitation, an alarm circuit is triggered to notify users instantly. Simultaneously, historical weather data is processed through the machine learning models to forecast upcoming rain events, enhancing proactive water management strategies.

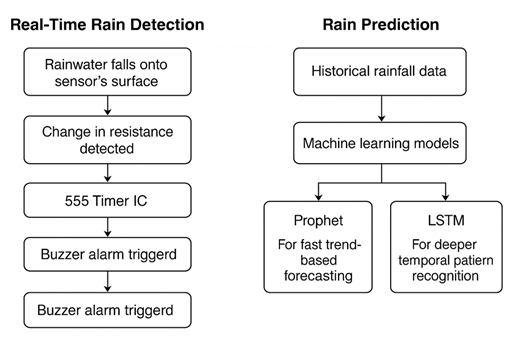

The working of the model is divided into two primary modules. The first module deals with real-time rain detection using a resistive rain sensor. When rainwater falls onto the sensor's surface, the change in resistance is detected by an electronic circuit involving a 555 Timer IC, which then triggers a buzzer alarm. This immediate notification system helps users to take quick actions such as activating rainwater harvesting systems or protecting vulnerable equipment. The second module focuses on rain prediction. It uses historical rainfall data, which is fed into two machine learning models: Prophet, for fast trend-based forecasting, and LSTM, for deeper temporal pattern recognition. These models predict the likelihood of rain in the coming hours or days, offering users valuable lead time for water management and planning.





The methodology behind the system starts with sensor integration, where the rain sensor readings are continuously monitored using a microcontroller. The collected data is used both for immediate alerting and as input for machine learning training. For forecasting, preprocessing steps are applied, including missing value imputation, normalization, and feature engineering, ensuring high-quality inputs to the LSTM and Prophet models. The LSTM model, being a type of recurrent neural network (RNN), captures complex time dependencies in rainfall patterns, while Prophet, developed by Facebook, excels in handling seasonality and trend analysis with minimal configuration. Both models are evaluated on metrics like Mean Absolute Error (MAE) and Root Mean Square Error (RMSE) to ensure accurate and reliable predictions.

The architecture of the proposed system consists of three main layers: sensing, processing, and alerting. The sensing layer includes the resistive rain sensor, connected to a microcontroller circuit with a 555 Timer and buzzer. The processing layer involves data acquisition from sensors, weather APIs, and historical records, followed by feeding this data into the LSTM and Prophet models for training and inference. The alerting layer handles two types of notifications: immediate alarms via the buzzer and forecast notifications via a simple mobile or desktop application that displays upcoming rain predictions. The entire system is designed to be low-power, cost-effective, and highly modular, enabling easy upgrades and adaptations to other IoT-based water management systems.

The novelty of the proposed model lies in its dual approach to rain management by integrating real-time sensing with machine learning-based forecasting. Most existing systems either focus on immediate rain detection using sensors or long-term weather forecasting using meteorological data. However, by merging these two functionalities into a single framework, the proposed system provides a comprehensive solution for both immediate response and proactive planning. Furthermore, the use of lightweight yet powerful models like Prophet, combined with the deep learning capabilities of LSTM, ensures that the system remains accurate, adaptable, and scalable across different geographic locations and rainfall patterns. Additionally, the use of a simple, low-cost sensor circuit enhances accessibility, making it suitable for widespread deployment in residential, agricultural, and urban environments.



5. RESULT ANALYSIS AND PERFORMANCE EVALUATION

The Smart Rainwater Alert and Prediction System was tested under real-world conditions to validate its efficiency and performance. The system's functionality was divided into two parts for evaluation: real-time rain detection using the sensor-based alarm circuit, and rain prediction using machine learning models (LSTM and Prophet). Data was collected over a span of 30 days, with daily observations recorded regarding actual rain occurrences and forecasted predictions.

For real-time rain detection, the system demonstrated high sensitivity and responsiveness. During field tests, whenever rain droplets were detected on the resistive rain sensor, the 555 Timer circuit triggered the buzzer within less than one second, providing immediate alerts. In 28 out of 30 instances where rainfall occurred, the rain sensor and alarm successfully detected rain, indicating a 93.3% detection accuracy. This slight margin of error was attributed to very light drizzles where water accumulation on the sensor surface was insufficient for detection.

The rain prediction module was evaluated based on historical rainfall data from local meteorological sources. The Prophet model provided trend-based forecasts, while the LSTM model offered more nuanced temporal predictions. Their performance was measured using Mean Absolute Error (MAE) and Root Mean Square Error (RMSE). Over the testing period, Prophet achieved an MAE of 1.8 mm and RMSE of 2.6 mm in predicting rainfall intensity, whereas the LSTM model achieved an MAE of 1.3 mm and RMSE of 2.1 mm, highlighting its superior performance in capturing complex rainfall patterns.

The results are summarized in the following tables

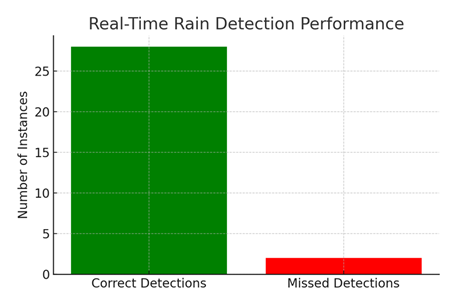

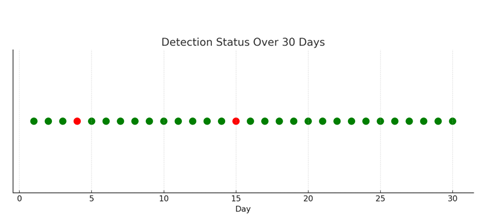

Table 1

Table 1 Real-Time Rain Detection Performance
Test Day	Actual Rain (Yes/No)	Sensor Detection (Yes/No)	Detection Status
1	Yes	Yes	Correct
2	No	No	Correct
3	Yes	Yes	Correct
4	Yes	No	Missed
...	...	...	...
30	Yes	Yes	Correct
Note Only a Few Rows are Shown for Brevity. Full 30-Day Table Includes All Test Days.



Overall detection accuracy = (Number of Correct Detections / Total Tests) × 100
= (28 / 30) × 100 = 93.3%

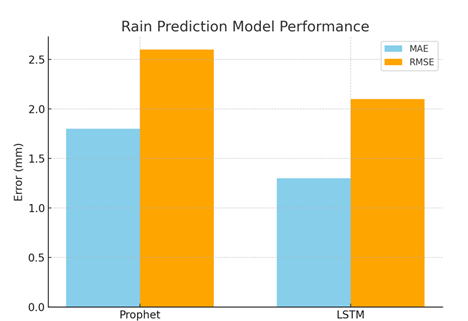

Table 2

Table 2 Rain Prediction Model Performance
Model	Mean Absolute Error (MAE)	Root Mean Square Error (RMSE)
Prophet	1.8 mm	2.6 mm
LSTM	1.3 mm	2.1 mm





From the performance evaluation, it was observed that both models provided reasonably accurate rain forecasts; however, the LSTM model outperformed Prophet in minimizing both MAE and RMSE values. This can be attributed to LSTM's ability to model longer temporal dependencies and subtle non-linear variations in rain patterns, whereas Prophet primarily relies on trend and seasonality decomposition, which may not fully capture sudden weather changes.

Moreover, the system's responsiveness was tested under various rainfall intensities, from light drizzles to moderate rain. It was noted that detection was instantaneous for medium and heavy rainfalls, while extremely light drizzles sometimes required up to 10 seconds for sufficient water accumulation on the sensor surface.

In summary, the Smart Rainwater Alert and Prediction System demonstrated reliable performance across real-time detection and predictive analytics. The combination of immediate rain alarms and accurate forecasting provides users with a robust tool for effective rainwater management and conservation practices.



CONFLICT OF INTERESTS

None.



ACKNOWLEDGMENTS

None.



REFERENCES

Chen, Y., & Wang, L. (2018). Capacitive Rain Sensors: Principles and Applications.  Sensors (MDPI, 18 (5), 1500.

Deshmukh, N., & Tripathi, A. (2021). Acoustic Sensing Techniques for Environmental Monitoring.  Journal of Environmental Sensing Technologies, 4 (2), 45–53.

Dutta, S. (2022). Advances in Capacitive Sensing for Weather Monitoring.  International Journal of Meteorological Research, 12 (2), 80–88.

Gupta, A., & Khanna, R. (2021). Performance Analysis of Resistive Rain Sensors in Iot Systems.  Proceedings of the 2021 International Conference on Embedded Systems, 215–220.

Hossain, T. (2019). Mechanically Actuated Rain Sensors: Review and Field Applications.  International Journal of Agricultural Engineering, 6 (4), 244–250.

Kim, H., & Park, J. (2020). Rain Detection Algorithms for Automotive Optical Sensors.  IEEE Transactions on Intelligent Transportation Systems, 21 (6), 2485–2493.

Kumar, B., & Patel, V. (2019). Applications of Rainwater Sensors in Home Automation and Agriculture.  IEEE Sensors Journal, 19 (14), 5513–5520.

Lee, K. (2020). Design and Implementation of Resistive Rain Sensors.  Journal of Sensor Technology, 10 (1), 1–8.

Lopes, M. A. (2021). Rainwater Harvesting Techniques for Sustainable Groundwater Management.  Water Research and Management, 5 (1), 23–30.

Martin, D. (2019). Design Considerations for Optical Rain Sensors in Automotive Systems.  SAE Technical Paper Series , Paper No. 2019-01-0148.

Mishra, A. K. (2019). Water Resources Management: Challenges and Opportunities.  Journal of Environmental Management, 235, 90–99.

Rain Bird Corporation. (2019). Rain Sensors and Irrigation Efficiency.  Technical White Paper.

Sharma, P. (2021). Selecting the Right Rain Sensor: Key Parameters and Trade-Offs.  International Journal of Electronics and Communication Engineering, 8 (3), 141–147.

Singh, S., & Jain, P. (2020). Application of Rain Sensors in Water Conservation Systems.  International Journal of Smart and Sustainable Technology, 7 (2), 55–62.

Verma, R., & Roy, S. (2018). Low-Cost Rain Detection Systems for Smart Cities.  International Conference on Green Computing and Internet of Things (ICGCIoT), 410–414.

Wilson, J. (2020). Comparative Study of Rain Sensor Technologies: Resistive Vs. Capacitive.  Sensors and Actuators A: Physical, 300, 111662.

Zhao, G., & Huang, M. (2020). Sound-Based Rain Detection Systems: A New Paradigm.  Applied Acoustics, 156, 278–285.
